I saw this on the web. Hope it can help somebody! :)

Posted 16 January 2011 - 02:12 PM
REMOVAL
WARNING: Before servicing the steering column the airbag system must be disarmed. Refer to electrical restraint system for service procedures. Failure to do so may result in accidental deployment of the airbag and possible personal injury.


CAUTION: All fasteners must be torqued to specification to ensure proper operation of the steering column.




1. Position the front wheels straight-ahead.
2. Fully extend or pull out adjustable steering column.
3. Disconnect the negative (ground) cable from the battery.
4. Remove the driver airbag (3).


Air Bag removal

1. Disconnect and isolate the battery negative cable.

WARNING: Wait two minutes for the airbag system reserve capacitor to discharge before beginning any airbag system or component service. Failure to do so may result in accidental airbag deployment, which may result in serious or fatal injury.


2. From behind the steering wheel (1), remove the two screw covers and screws (5) to the driver airbag (3).

CAUTION: Do not pull on the horn switch feed pigtail wire to disengage the connector from the driver airbag or to disconnect the horn switch to steering wheel wire harness connection. Improper pulling on this pigtail wire or connection can result in damage to the horn switch membrane or feed circuit.


3. Carefully pull airbag rearward just far enough to disconnect the two airbag squib connectors (2) and the horn connector (4).
4. Separate driver airbag from steering column.


NOTE: The driver airbag trim cover is available for service separately. If the horn switch is faulty or the trim cover is damaged, the airbag cushion assembly may be transferred to a new trim cover. If the airbag is defective, the entire driver airbag and driver airbag trim cover must be replaced as an assembly.

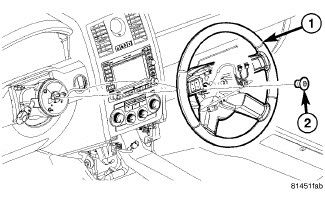

5. Remove the steering wheel retainer bolt (2), then slide the steering wheel (1) off the shaft.
6. If wheel is being replaced, transfer attached components as necessary.

Dash Removal

WARNING: Disable the supplemental restraint system before attempting any steering wheel, steering column, airbag, Occupant Classification System (OCS), seat belt tensioner, impact sensor, or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the Supplemental Restraint System (SRS). Failure to take the proper precautions could result in accidental airbag deployment and serious or fatal injury.


WARNING: Never strike or drop the Occupant Restraint Controller (ORC), as it can damage the impact sensor or affect its calibration. The occupant restraint controller contains the impact sensor, which enables the system to deploy the supplemental restraints. If an airbag control module is accidentally dropped during service, the module must be scrapped and replaced with a new unit. Failure to observe this warning could result in accidental, incomplete, or improper supplemental restraint deployment and serious or fatal injury.


CAUTION: On vehicles equipped with the Occupant Classification System (OCS), never replace both the Occupant Restraint Controller (ORC) and the Occupant Classification Module (OCM) at the same time. If both require replacement, replace one. Then perform the supplemental restraint verification test before replacing the other. Both the ORC and the OCM store OCS calibration data, which they transfer to one another when one of them is replaced. If both are replaced at the same time, an irreversible fault will be set in both modules.





1. Before proceeding with the following repair procedure, review all warnings and cautions.
2. Disconnect and isolate the negative battery cable.
3. Raise and support the vehicle.
4. Disconnect the steering column from the steering coupling.(Refer to 19 - Steering/Column/COUPLING, Steering Column - Removal)
5. Lower the vehicle.
6. Remove steering column as necessary. (Refer to 19 - Steering/Column - Removal) .
7. Remove the glove box. (Refer to 23 - Body/Instrument Panel/GLOVE BOX, Instrument Panel - Removal)
8. Remove the left and right side instrument panel silencers. (Refer to 23 - Body/Instrument Panel/PANEL, Silencer - Removal) .

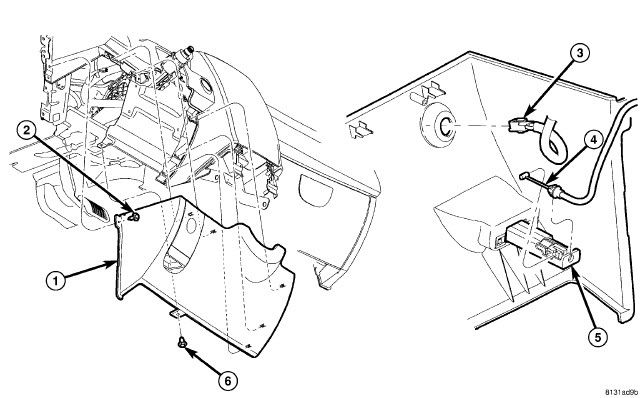

9. Remove the screws (2 and 6) that secure the steering column cover (1) to the instrument panel.
10. Disconnect the electrical connector (3) from the trunk release switch.
11. Disconnect the hood release cable (4) from the hood release handle (5) and remove the steering column cover from the vehicle.




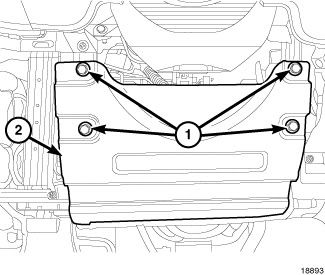

12. Remove the screws (1) that secure the instrument panel steering column cover reinforcement (2) to the bracket and remove the reinforcement from the vehicle.

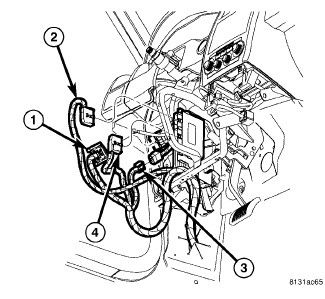

13. Disconnect the body wire harness connectors (1 and 3) from the instrument panel wire harness connectors.
14. Disconnect the body wire harness connectors (2 and 4) from the transmission control module.
15. Remove the center floor console. (Refer to 23 - Body/Interior/CONSOLE, Floor - Removal) .




16. Disconnect the antenna coax (1) from the instrument panel coax extension.

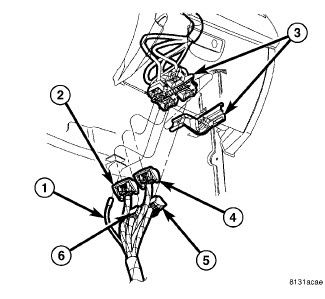

17. Disconnect the wire harness connectors (2, 4, 5 and 6) from the instrument panel wire harness connectors (3).





18. Remove the A-pillar trim panels. (Refer to 23 - Body/Interior/PANEL, A-Pillar Trim - Removal)

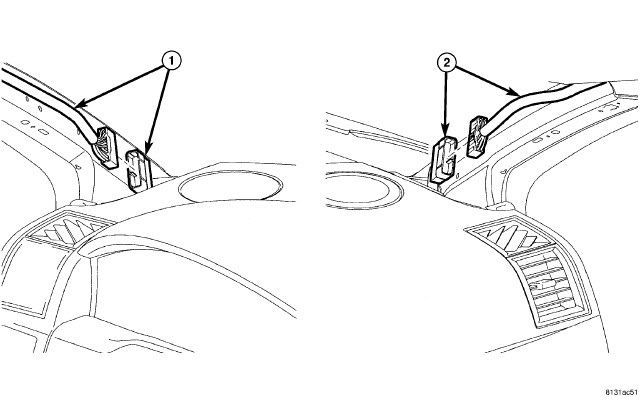

19. Disconnect the wire harness connectors (1 and 2) located on the A-pillars.





20. Remove the end caps from the left and right side of the instrument panel to access the instrument panel side support bolts (1) and remove the bolts.
21. Remove the defroster grille to access the instrument panel top retaining bolts (2) and remove the bolts. (Refer to 23 - Body/Instrument Panel/GRILLE, Defroster - Removal) .
22. Remove the bolts (3) that secure the bottom of the instrument panel.

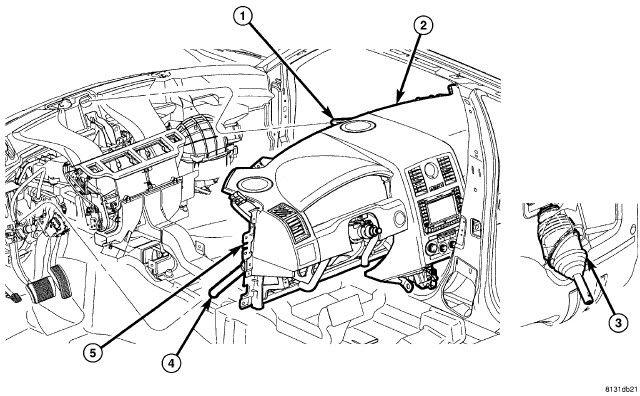

23. Lift the instrument panel assembly (2) off of the supports (1 and 5). Guide the steering column end (4) through the opening in the dash panel (3) and remove the instrument panel through the passenger door.




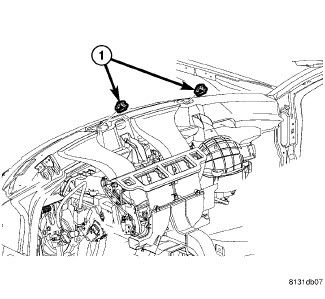

24. If required, remove the spring nuts (1) from the dash panel.


·
Registered
Joined
·
9,272 Posts
hmmm,

well in the fire service we just use hydraulically operated power tools. much faster


·
Registered
Joined
·
1,048 Posts
Ok, where's the NEXT and most important step?
Accessing the M&M removal panel....
